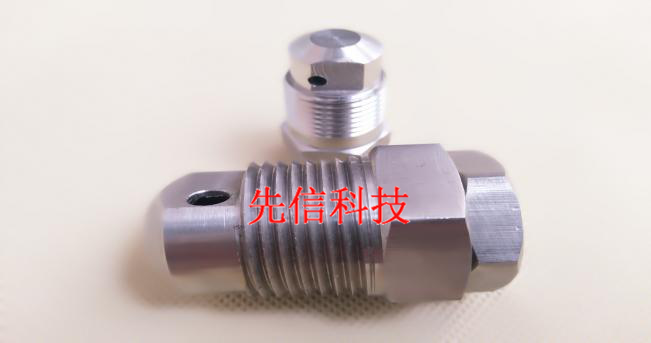

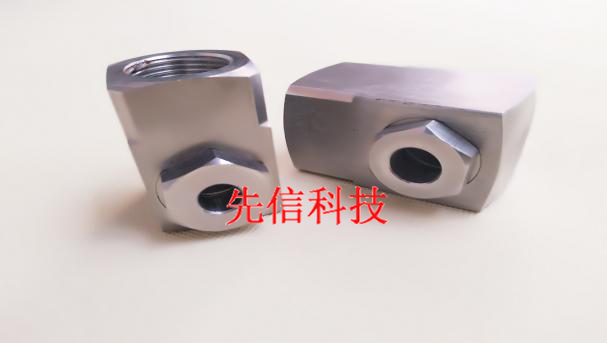

空心錐小流量噴霧噴嘴
鏈接尺寸 噴嘴型號 流量大小 入口孔徑mm 出口孔徑mm 流量L/min 壓力Mpa 標準 內接頭 外接頭 0.05Mpa 0.1Mpa 0.15Mpa 0.2 Mpa 0.3 Mpa 0.4Mpa 0.5 Mpa 0.6 Mpa 0.7 Mpa A B 3/8 ● ● 2 2.4 2.0 0.91 1.1 1.3 1.6 1.8 2.0 2.2 2.4 ● ● 3 2.4 2.4 0.96 1.4 1.7 1.9 2.4 2.7 3.1 3.3 3.6 1/2 ● ● 5 3.2 3.6 1.6 2.3 2.8 3.2 3.9 4.6 5.1 5.6 6.0 ● ● 8 4.0 4.0 2.6 3.6 4.5 5.2 6.3 7.3 8.2 8.9 9.6 ● ● 10 4.4 4.4 3.2 4.6 5.6 6.4 7.9 9.1 10.2 11.2 12.1 3/4 ● ● 15 6.4 5.6 4.8 6.8 8.4 9.7 11.8 13.7 15.3 16.7 18.1 ● ● 20 7.1 6.4 6.4 9.1 11.2 12.9 15.8 18.2 20 22 24 ● ● 25 7.1 7.5 8.1 11.4 14.0 16.1 19.7 23 25 28 30
一寸● ● 40 12.7 7.9 12.9 18.2 22 26 32 36 41 45 48 ● ● 50 12.7 9.5 16.1 23 28 32 39 46 51 56 60 ● ● 60 12.7 11.1 19.3 27 33 39 47 55 61 67 72 ● ● 70 12.7 12.7 23 32 39 45 55 64 71 78 84 ● ● 80 12.7 14.3 26 36 45 52 63 73 82 89 96 ● ● 90 12.7 14.7 29 41 50 58 71 82 92 100 109 ● ● 100 12.7 15.9 32 46 56 64 79 91 102 112 121 ● ● 110 12.7 17.1 35 50 61 71 87 100 112 123 133 ● ● 120 12.7 18.3 39 55 67 77 95 109 122 134 145
